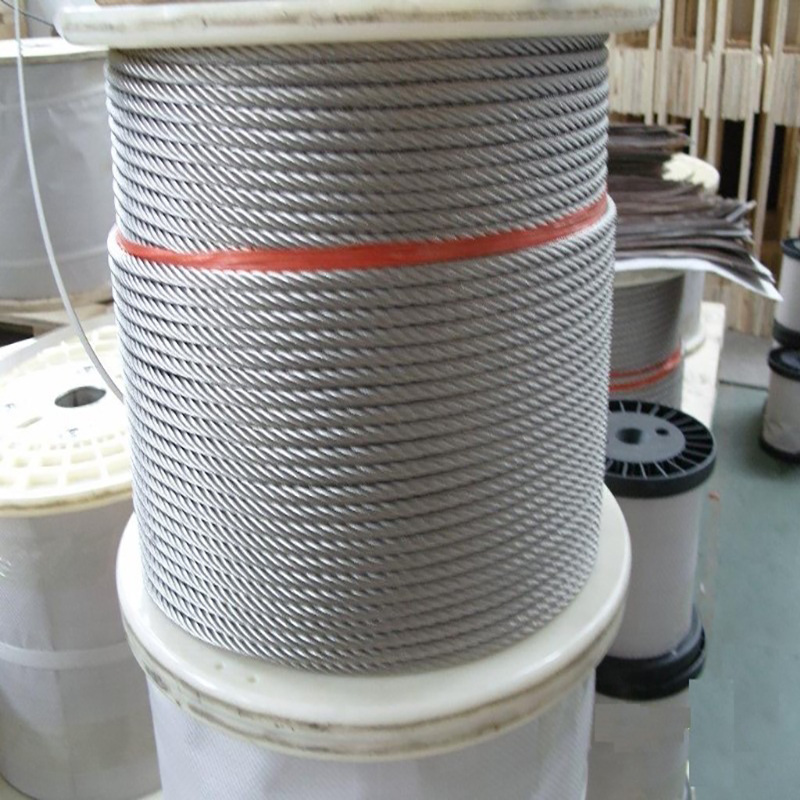

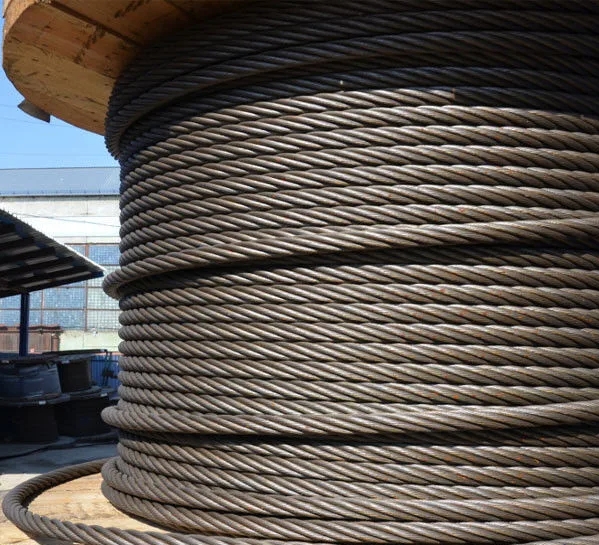

8X61+FC

Purpose: For large-scale lifting operations, excavators, ships, offshore facilities, salvage, etc

Standard：ISO,JIS,ASTM,AS EN
✦Advantage: Competitive price and quality from our own factory
✦Certification : Approved by ISO9001, CE, SGS every year
✦ We promise that all steel sold will have a 2-year warranty period and will be responsible for every batch of goods you buy!
✦ We are a professional steel manufacturer with guaranteed quality. If you want to purchase products, please contact us for a more favorable price!

WhatsApp: +86 15066693940

Email: Arai@shengsensteel.com

Online Message

Related Products

Product Description

wire rope diameter	Theoretical weight of steel wire rope kg/100m		Nominal tensile strength of steel wire rope/MPa
			1570		1670		1770		1870		1960
			Minimum breaking force of steel wire rope /（KN）
mm	Natural fiber core steel wire rope	Steel core wire rope	Fiber core steel wire rope	Steel core wire rope	Fiber core steel wire rope	Steel core wire rope	Fiber core steel wire rope	Steel core wire rope	Fiber core steel wire rope	Steel core wire rope	Fiber core steel wire rope	Steel core wire rope
60.00	1370.00	1640.00	1660.00	1960.00	1760.00	2080.00	1870.00	2200.00	1970.00	2330.00	2070.00	2440.00
62.00	1460.00	1750.00	1770.00	2090.00	1880.00	2220.00	1990.00	2350.00	2110.00	2490.00	2210.00	2610.00
64.00	1560.00	1860.00	1880.00	2230.00	2000.00	2370.00	2120.00	2510.00	2240.00	2650.00	2350.00	2780.00
66.00	1660.00	1980.00	2000.00	2370.00	2130.00	2520.00	2260.00	2670.00	2390.00	2820.00	2500.00	2950.00
68.00	1760.00	2100.00	2130.00	2510.00	2260.00	2670.00	2400.00	2830.00	2530.00	2990.00	2660.00	3140.00
70.00	1860.00	2230.00	2250.00	2660.00	2400.00	2830.00	2540.00	3000.00	2680.00	3170.00	2810.00	3320.00
72.00	1970.00	2360.00	2380.00	2820.00	2540.00	3000.00	2690.00	3170.00	2840.00	3350.00	2980.00	3520.00
74.00	2080.00	2490.00	2520.00	2970.00	2680.00	3160.00	2840.00	3350.00	3000.00	3540.00	3140.00	3710.00
76.00	2190.00	2630.00	2660.00	3140.00	2830.00	3340.00	3000.00	3540.00	3160.00	3740.00	3320.00	3920.00
78.00	2310.00	2770.00	2800.00	3300.00	2980.00	3520.00	3160.00	3730.00	3330.00	3940.00	3490.00	4130.00
80.00	2430.00	2910.00	2940.00	3480.00	3130.00	3700.00	3320.00	3920.00	3510.00	4140.00	3680.00	4340.00
82.00	2560.00	3060.00	3090.00	3650.00	3290.00	3890.00	3490.00	4120.00	3680.00	4350.00	3860.00	4560.00
84.00	2680.00	3210.00	3250.00	3830.00	3450.00	4080.00	3660.00	4320.00	3870.00	4570.00	4050.00	4790.00
86.00	2810.00	3370.00	3400.00	4020.00	3620.00	4270.00	3840.00	4530.00	4050.00	4790.00	4250.00	5020.00
88.00	2940.00	3520.00	3560.00	4210.00	3790.00	4470.00	4020.00	4740.00	4240.00	5010.00	4450.00	5250.00
90.00	3080.00	3690.00	3730.00	4400.00	3960.00	4680.00	4200.00	4960.00	4440.00	5240.00	4650.00	5490.00
92.00	3220.00	3850.00	3890.00	4600.00	4140.00	4890.00	4390.00	5180.00	4640.00	5480.00	4860.00	5740.00
94.00	3360.00	4020.00	4060.00	4800.00	4320.00	5110.00	4580.00	5410.00	4840.00	5720.00	5070.00	5990.00
96.00	3500.00	4190.00	4240.00	5010.00	4510.00	5330.00	4780.00	5640.00	5050.00	5960.00	5290.00	6250.00
98.00	3650.00	4370.00	4420.00	5220.00	4700.00	5550.00	4980.00	5880.00	5260.00	6210.00	5520.00	6510.00
100.00	3800.00	4550.00	4600.00	5430.00	4890.00	5780.00	5190.00	6120.00	5480.00	6470.00	5740.00	6780.00
102.00	3950.00	4730.00	4790.00	5650.00	5090.00	6010.00	5400.00	6370.00	5700.00	6730.00	5970.00	7060.00
104.00	4110.00	4920.00	4980.00	5880.00	5290.00	6250.00	5610.00	6620.00	5930.00	7000.00	6210.00	7330.00
106.00	4270.00	5110.00	5170.00	6100.00	5500.00	6490.00	5830.00	6880.00	6160.00	7270.00	6450.00	7620.00
108.00	4430.00	5310.00	5370.00	6340.00	5710.00	6740.00	6050.00	7140.00	6390.00	7550.00	6700.00	7910.00
110.00	4600.00	5510.00	5570.00	6570.00	5920.00	5920.00	6280.00	7410.00	6630.00	7830.00	6950.00	8210.00
112.00	4770.00	5710.00	5770.00	6810.00	6140.00	6140.00	6510.00	7680.00	6870.00	8120.00	7200.00	8510.00
114.00	4940.00	5910.00	5980.00	7060.00	6360.00	6360.00	6740.00	7960.00	7120.00	8410.00	7460.00	8810.00
116.00	5110.00	6120.00	6190.00	7310.00	6580.00	6580.00	6980.00	8240.00	7370.00	8710.00	7730.00	9130.00
118.00	5290.00	6340.00	6410.00	7560.00	6810.00	6810.00	7220.00	8530.00	7630.00	9010.00	8000.00	9440.00
120.00	5470.00	6550.00	6620.00	7820.00	7050.00	7050.00	7470.00	8820.00	7890.00	9320.00	8270.00	9770.00
The total minimum breaking force of steel wire=the minimum breaking force of steel wire rope multiplied by 1.234 (fiber core) or 1.374 (steel core)
