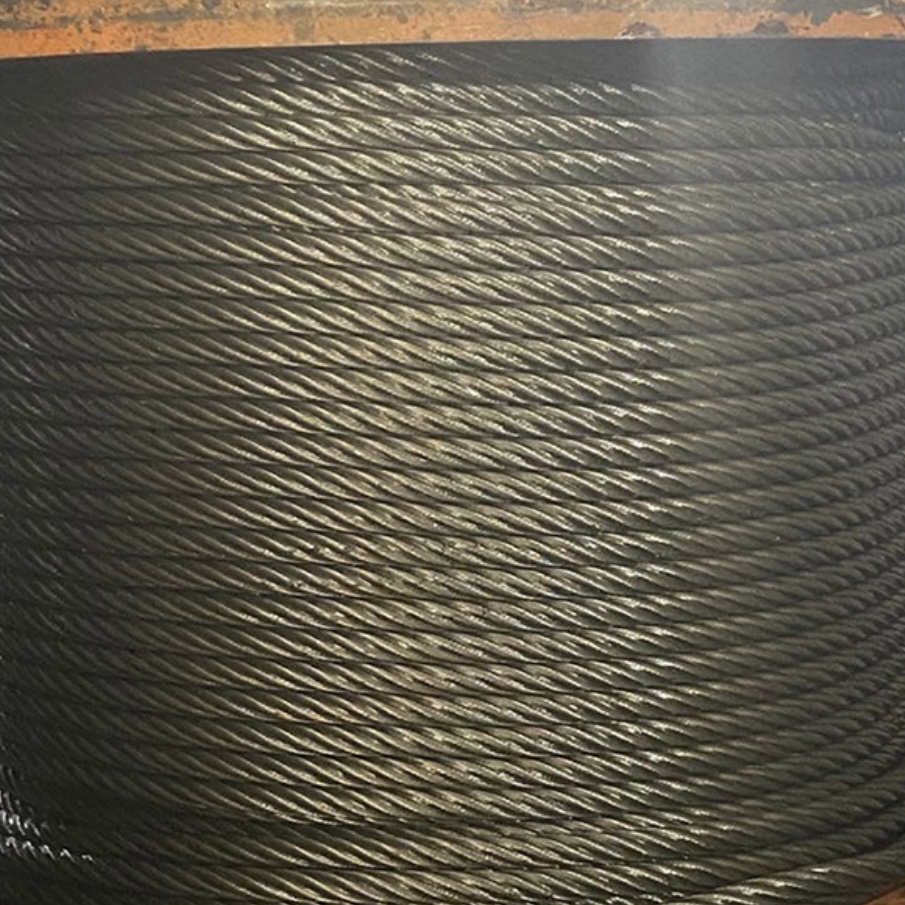

18XK7-WSC

18XK7-WSC
Purpose: For use in lifting, hoisting, transporting, and towing equipment

Standard:ISO,JIS,ASTM,AS EN
✦Advantage: Competitive price and quality from our own factory
✦Certification : Approved by ISO9001, CE, SGS every year
✦ We promise that all steel sold will have a 2-year warranty period and will be responsible for every batch of goods you buy!
✦ We are a professional steel manufacturer with guaranteed quality. If you want to purchase products, please contact us for a more favorable price!

WhatsApp: +86 15066693940
WhatsApp: +86 15066693940
Email: Arai@shengsensteel.com

Product Description

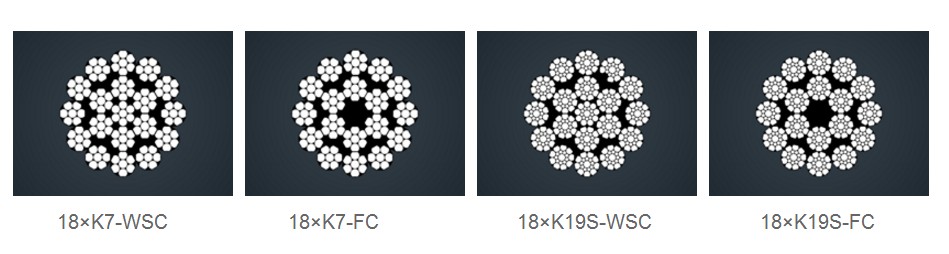

37b8aec14a9a4318a011335a742ab2c4_249

Product specifications
Product NameNon rotating steel wire rope/Micro rotating steel wire rope/Semi rotating steel wire rope/Anti rotating steel wire rope
Structure Specifications18X7
Structure Specifications18 strands of steel wire rope, 7 wires per strand, with a central oil immersed fiber core, double-layer strands, with two layers twisted in both directions, with good anti rotation performance. The surface of the strands and rope is lubricated, with good overall performance, wear resistance, and stable and reliable service life
DiameterProduction according to requirements
Tensile Strength1570,1670,1770,1870,1960,2160MPa
Twist DirectionInteractive twist or co twist, left or right rotation
MaterialHigh quality high-speed wire
Surface StateSmooth surface, galvanized
Execution StandardsMT716-2006, GB8918-2006, GB/T20118-2006 or other standards










Steel wire rope structure: 18x7

Nominal tensile strength of steel wire rope/Mpa
Nominal diameter of steel wire rope (D/mm)Permissible deviation (%)Reference weight of steel wire rope (KG/100m)157016701770




Minimum breaking force of steel wire, KN


Fiber CoreSteel CoreFiber CoreSteel CoreFiber CoreSteel CoreFiber CoreSteel Core
18
126139158167168177178188
20
156172195206207219219232
22+5
0
189208236249251265266281
24225248280294298316316334
26
264291329348350370371392
28
306337382404406429430455
30
351387438463466493494523
32
399440498527530561562594
